Compatible with Inspire 1 and Matrice 100, DJI’s most advanced camera to date enables you to get crystal clear images from the sky.
- 4K video at up to 30fps
- Record at 4096×2160 (24fps) or 3840×2160 (30/25fps)
- 16MP photographs
- 12.8 stops of dynamic range
(DJIZenX5)
- Records 4K video at up to 30FPS, or 1080P video at up to 60FPS
- Capable of producing 12 megapixel stills
- Lens: 9 elements in 9 groups including an aspherical element
- 1/2.3 inch CMOS sensor
- 94⁰ wide-angle FOV
- Full 360⁰ range, giving you limitless freedom
- 3-Axis gimbal helps to produce smooth and stable footage in any flight conditions
- 20mm focal length lens with no distortion or fish-eye look

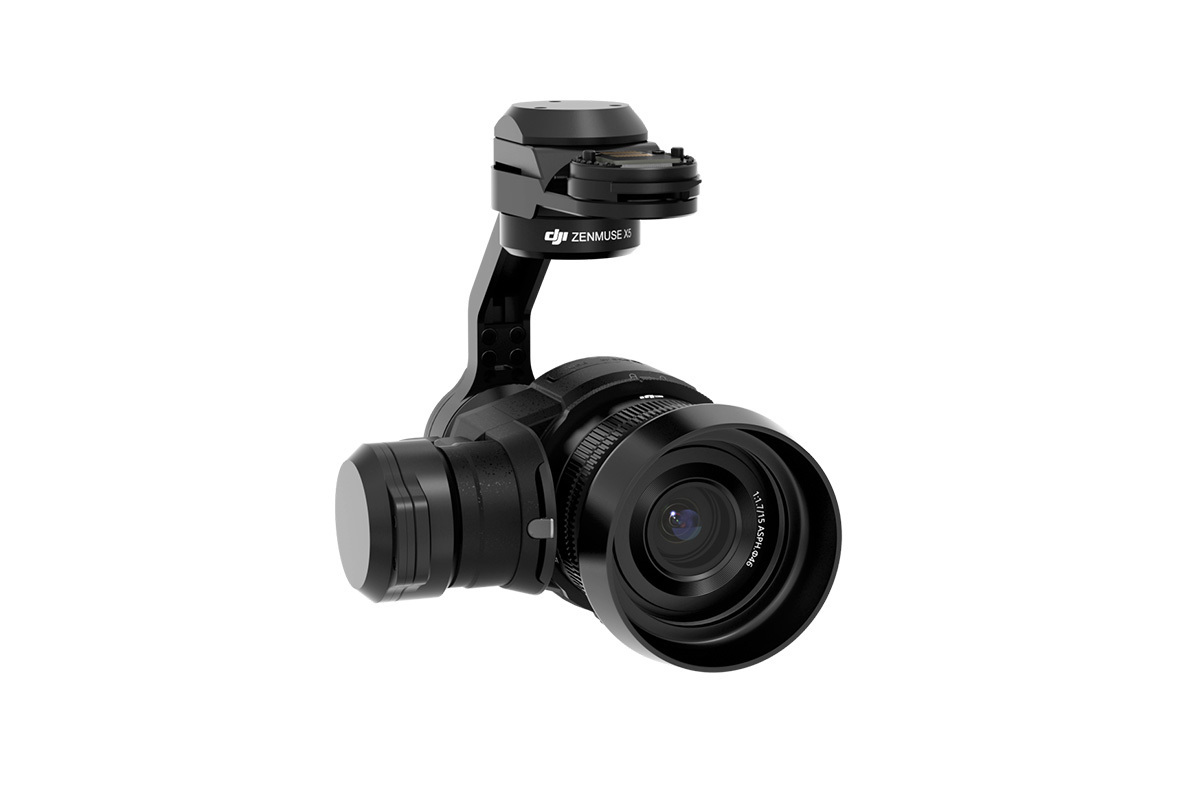

Zenmuse X5 |
|||
---|---|---|---|
General |
Dimensions | 120mm (W) x 135mm (H) x 140mm (D) | |
Weight (Standard Lens, Balancing Ring, Lens Hood, Micro SD Card Included) |
526 g | ||
Static Output Power |
8 W | ||
Peak Output Power |
13W | ||
Operating Temperature |
32° to 104° F (0° to 40° C) | ||
Camera |
Lens |
Replaceable lens M43 mount supporting auto-focus |
|
Supported Lenses |
DJI MFT 15mm f/1.7 ASPH * Panasonic Lumix 15mm f/1.7 * Olympus M. ED 12mm f/2.0 Olympus M.Zuiko 17mm f/1.8 * Olympus M.Zuiko ED 14-42mm f/3.5-5.6 EZ * (photography only) Olympus M.Zuiko 25mm f1.8 Olympus M.Zuiko 45mm f1.8 (photopraphy only) *Requires a balancing weight |
||
Sensor |
4/3-inch CMOS sensor | ||
Effective Pixels |
1600 M | ||
Max Resolution |
4608x3456 | ||
ISO Range |
100~25600 | ||
Electronic Shutter Speed |
8 to 1/8000 s | ||
Field of View (FOV) |
15mm/ f1.7:72° 12mm/ f2.0:84° |
||
Still Photography Modes |
Single shot Burst shooting: 3/5/7 frames Auto Exposure Bracketing: 3/5 bracketed frames at 0.7EV bias Time-lapse (5/7/10/20/30 sec) |
||
Video Resolution |
UHD: 4096×2160 (24/25p); 3840×2160 (25/30p); FHD: 1920×1080 (24/25/30/48/50/60p) |
||
Max Video Bitrate |
60 Mbps | ||
Supported File Formats |
FAT32 / exFAT Photo: JPEG, DNG Video: MP4, MOV (MPEG-4/AVC/H.264F) |
||
Supported Storage Devices |
Class 10 or UHS-1 or above Micro SD cards Max capacity of 64 GB |
||
Default Lens |
Name |
DJI MFT 15mm f/1.7 ASPH | |
Focal length |
f=15 mm (35 mm film camera equivalent: 30 mm) | ||
Aperture type |
7 diaphragm blades/circular aperture diaphragm | ||
Maximum aperture |
F1.7 | ||
Minimum aperture value |
F16 | ||
Lens construction |
9 elements in 7 groups (3 aspherical elements) | ||
In focus distance |
0.2 m to ∞ (from the focus distance reference line) | ||
Mount |
Micro 4/3 | ||
Field of View (FOV) |
72° | ||
Max. diameter |
Approx. 57.5 mm | ||
Overall length |
Approx. 36 mm | ||
Mass |
Approx. 115 g | ||
Gimbal |
Model |
Zenmuse X5 | |
Angular Vibration Range |
±0.02° | ||
Mount |
Detachable | ||
Controllable Range |
Pitch: -90° to +30° Pan: ±320° |
||
Max Controllable Speed |
Pitch: 120°/s Pan: 180°/s |
SKU | DJIZenX5 |
Brand | DJI |
Artist / Author | DJI |
