reorder today with a refundable $100 deposit. ETA November/December 2017

Buy your DJI Zenmuse X7 Gimbal and Camera Unit from Rise Above in Sydney, and have confidence that you are dealing with Australia's UAV experts.  We ship all across Australia and Internationally, and always offer Australia's best prices. If you find a lower price elsewhere, we will do our best to match it!  We have a team of technicians who can handle most warranty issues locally, as well as repairs, maintenance and upgrades.  For more info, click here

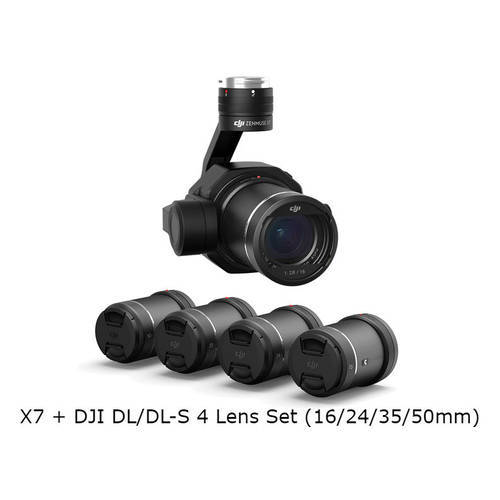

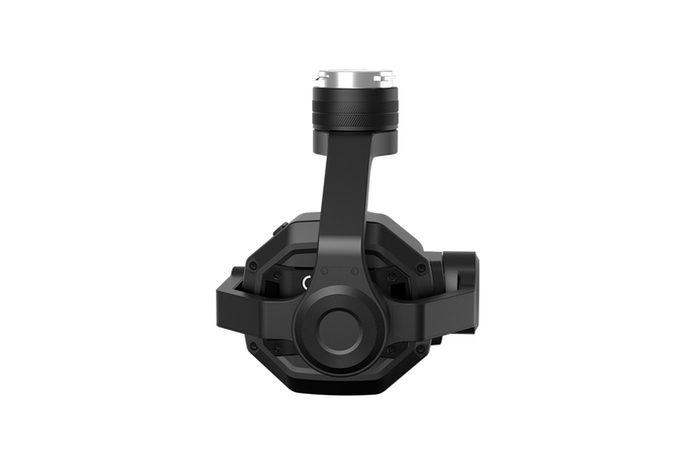

The Zenmuse X7 is a compact Super 35 camera with an integrated gimbal made for high-end filmmaking that delivers stunning resolution and image quality. Its compatibility with the Inspire 2 offers the best in next-level professional aerial cinematography. A 24 MP CMOS sensor rated at 14 stops of dynamic range preserves astonishing detail and offers both 6K CinemaDNG and 5.2K Apple ProRes with support for continuous RAW burst shooting at 20 fps and 24 MP stills.

The X7 also introduces the DL-Mount, the world's first integrated aerial lens mount that allows switching between four available prime lenses quickly. For seamless editing, a new DJI Cinema Color System preserves accurate colors for easier post-processing. These latest innovations allow filmmakers to reach new heights and capture scenes as they imagine them with the DJI Zenmuse X7.

Protect your investment by adding DJI Care Refresh for your Zenmuse X7

DJI X7 FAQ

Can I use the Zenmuse X7 on platforms other than the Inspire 2 or by itself?

The Zenmuse X7 gimbal and camera can only be used with Inspire 2 at this time. However, the X7 will be compatible with more DJI products in the future.

Is the Zenmuse X7 compatible with the Inspire 1?

No.

What are the main differences between the new Zenmuse X7 and Zenmuse X5S?

The Zenmuse X7 is equipped with a Super 35 mm image sensor and a DL-Mount that designed for aerial photography with four compatible lenses (16mm, 24mm, 35mm, and 50mm). In contrast, the Zenmuse X5S uses a 4/3-inch sensor, supporting eight professional lenses with a standard M4/3 mount. A balancing ring is needed for some X5S-compatible lenses.

How is the Zenmuse X7 an improvement over previous Zenmuse cameras? How is that going to change the image quality?

The Zenmuse X7 uses a 23.5×15.7 mm sensor, with the size of a single pixel increased to 3.91 μm. It captures RAW videos at up to 6K/30 fps or 3.9K/59.94 fps and photos with a resolution up to 24 MP. The larger sensor in the X7 delivers excellent photo and video quality with up to 14 stops of dynamic range.

What are the advantages of the DL-Mount?

The DL-Mount significantly cuts the size and weight of a camera while at the same time, retaining cinema-grade image quality. The DL-Mount shortens the X7’s flange focal distance to 16.84 mm, making the camera more compact and stable for aerial shoots.

What lenses are compatible with the Zenmuse X7?

Currently, the Zenmuse X7 is compatible with four DL-Mount prime lenses with a maximum aperture of F2.8. The 16 mm lens is equipped with a built-in ND filter. The 24 mm, 35 mm, and 50 mm lenses are equipped with leaf shutters that support a max shutter speed of up to 1/1000s.

Among the four compatible lenses, what’s the difference between DL-S and DL ones?

The maximum sensor size supported by the DL-S lens is Super 35 mm, while the other three DL lenses support full-frame sensors. All of them can achieve resolutions of up to 8K.

How does the leaf shutter work? What are some of its benefits?

When the shutter speed is slower than 1/1000s, the leaf shutter will be automatically enabled but can be manually turned off. The leaf shutter prevents image distortion caused by rolling shutter, stripes resulting from artificial lighting, and motion blur when shooting high-speed objects. Currently, the leaf shutter is only active in Single Shot mode.

Do the X7-compatible lenses support third-party filters?

Yes. Any filter with a diameter of 46 mm that weights 10-12 g and is no thicker than 4.4 mm (excluding threads) can be used with Zenmuse X7 lenses.

What storage device do I need if I use the Inspire 2 with the Zenmuse X7?

A Micro SD card and a DJI CINESSD. A Micro SD card is required for basic image capturing, while the CINESSD is necessary only for high-end productions requiring specific video formats. CINESSD cannot be used by itself without a Micro SD card.

Where are photos and videos stored when the Zenmuse X7 is connected to an Inspire 2?

JPEG and DNG pictures (not including RAW images captured in Burst mode) and videos recorded in H.264 and H.265 codecs are saved to the Micro SD card, while RAW images captured in Burst mode are stored in the DJI CINESSD. With the appropriate License Keys, CinemaDNG and Apple ProRes videos can be recorded and saved in the DJI CINESSD.

How are the Zenmuse X7, Inspire 2, DJI Inspire 2 License Keys, and CINESSD all related?

The Zenmuse X7 is a professional aerial camera that is compatible with the Inspire 2. Videos recorded by the Zenmuse X7 are processed by the CineCore 2.1 Image Processing System. A DJI Inspire 2 License Key unlocks CinemaDNG and/or Apple ProRes processing capabilities for CineCore 2.1. These files are then saved to the CINESSD when recorded. Video recording capabilities will vary depending on the capacity of the CINESSD being used.

X7 FEATURES

Engineered for Excellence

The X7 uses a Super 35 sensor, and its high readout speed supports RAW output at 6K/30 fps and 3.9K/59.94 fps. The pixel size reaches 3.91 µm and the diagonal length of the sensor is 26.6 mm when recording. A sensor this size offers a higher sensitivity to light and 14 stops of dynamic range — much wider than the 12.8 stops featured on the Zenmuse X5S.

Furthermore, the SNR of the X7 is 46 dB, 8 dB higher than the X5S, and the tonal range is as high as 9.41 bits. All of these features offer unlimited creative options for a better workflow in the most demanding situations on set.

DJI DL-Mount System

Taking advantage of new FSI-Cu technology, the X7’s sensor features thinner interconnection, allowing light to reach the sensing area via a larger incident angle for increased photosensitivity. This enables a more compact lens mount to be used on this sensor while maintaining excellent image quality.

The flange focal distance of the DL-Mount is less than 17 mm – roughly 1/3 of the size of a PL-Mount. Such a compact mount means that the X7 weighs only about 630 g with a lens included. Together, the X7 and Inspire 2 weigh around just 4 kg with the ability to capture the same challenging shots as more heavy-duty setups weighing up to 40 kg.

DL Lenses

DJI offers four prime lenses for the DL-Mount system, with focal lengths ranging from 16-50 mm (35 mm equivalent focal length: 24-77 mm) and resolutions of up to 8K. Made of lightweight carbon fiber and designed by world-leading optics teams, the four lenses have been embedded with advanced technologies crafted specifically for the X7’s high-end image sensor.

More Creative Flexibility

To unleash the X7's full potential, the CineCore image processing system on the Inspire 2 has been fully upgraded to CineCore 2.1. It is capable of recording 6K/30fps CinemaDNG and 5.2K/30fps Apple ProRes, leaving more creative options in post-production.

A brand new EI Mode has been integrated into CineCore 2.1, which can record high-quality footage at various levels of sensitivity. Additionally, the upgraded image processing system further reduces image artifacts and noise, preserving more details while adopting an improved dark level correction system for pro-level cinematic images.

Apart from improved image processing performance, CineCore 2.1 also features a new color system, giving professional filmmakers more creative flexibility in post-production.

A Game Changer from Shoot to Finish
The new color system consists of a new D-Log curve and a D-Gamut RGB color space. With professional cinematography in mind, the D-Log can encode 15 stops of dynamic range, 2 stops higher than the Zenmuse X5S. Even in poor light conditions, the X7 can still preserve stunning detail in shadows and highlights, leaving more room for post-production creativity.

D-Gamut covers the entire DCI-P3 color space commonly used in filmmaking. Tailored for aerial cinematography and stills photography, D-Gamut provides larger green tone coverage, delivering beautiful green gradation for your shoots.

D-Gamut also offers optimized skin tone adjustment by moving these tones to their most suitable chromaticity, ensuring vivid colors are reflected from every inch of skin. By applying the dedicated 3D-LUT in color grading, skin tones will softly transition, even with wide exposure differences. When designing D-Gamut, we considered manual color grading, preventing skin tones from turning yellow when editing without 3D-LUT or color management.

We are now working with multiple professional post-processing software companies to include D-Log and D-Gamut in their software to achieve universal compatibility with mainstream cinematic workflows as soon as possible.

(DJI-ZEN-X7-PAR)

(DJI-ZEN-X7-PAR)




SKU DJI-ZEN-X7-PAR
Brand DJI
