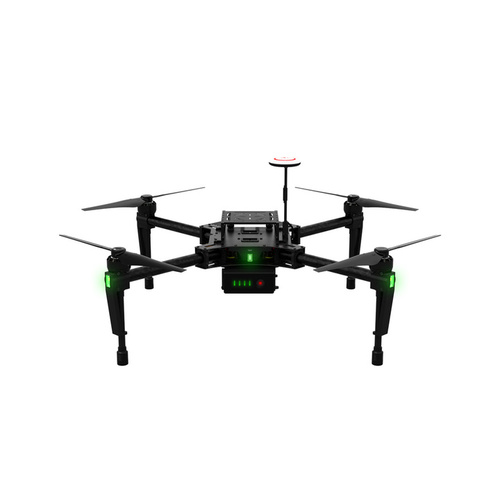

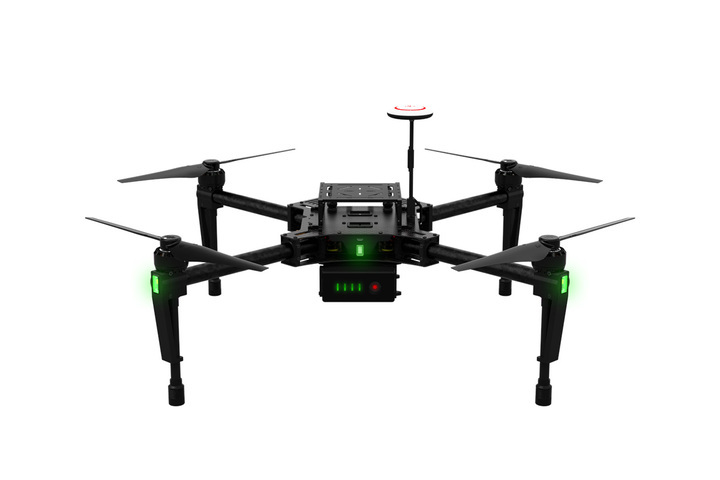

The DJI Matrice 100 is a fully customizable and programmable flight platform that lets you to turn your ideas and dreams into reality. Equipped with DJI’s easy-to-fly technology and optimized for easy programming through the DJI SDK, the Matrice 100 is ready to carry any sensors, devices that you want to put into the sky.

***Please note this product requires assembly***

Features

EXPANSION BAYS
Additional expansion bays allow you to add components, customize the payload, and fly with any devices you want. Put cameras, sensors, computing boards, communication tools, and more into the sky, and gather data while completing complex jobs from a birds-eye view.

UNIVERSAL POWER AND COMMUNICATION PORTS
aConnect and fly with a range of DJI or third party devices, and transmit data to the ground in real time. The Matrice 100 has dual parallel CAN ports for connecting DJI devices including the Guidance sensor system and dual parallel UART ports for connecting third party components of your choice. Now it is easy to mount your own equipment and put it into the sky.

DUAL BATTERY COMPARTMENTS
Add an additional battery compartment to achieve up to 40 minutes* of flight time. This gives greater power to both your platform and any additional devices or accessories that you wish to fly with.
*Flight times vary based on payload and flight conditions, and the maximum 40 minute flight time tested when hovering with dual TB48D batteries and no additional payload.

CUSTOMIZABLE MOUNTING AND BALANCING
Achieve perfect balance and an ideal flight experience by sliding the battery and other compartments around the body of your Matrice 100. Put your components exactly where you want them, and get the most out of your system.

ADJUSTABLE ARM ANGLE FOR GREATER TORQUE
Flexible to match your flight needs, adjusting the arm angle of each of the 4 arms is quick and easy. Achieve increased yaw torque and greater response by tilting the arms to a 3 degree angle.

50% LESS VIBRATIONS, RIGID,STRONG SYSTEM
To reduce vibrations, increase stiffness, and bring unmatched reliability, your Matrice 100 is made of strong, lightweight carbon fiber. Each of the arms contains DJI’s new soft vibration absorbing material that virtually eliminates feedback from the powerful motors, keeping your critical components stable and allowing unprecedented accuracy.

RESPONSIVE, QUICK RELEASE LANDING PADS
Innovative landing pads or “feet” are installed at the base of each arm to protect your Matrice 100 when landing. These pads greatly reduce impact, protecting your system and eliminating the chance of your platform unintentionally lifting off of the ground. Also easy and quick to remove for replacement or upgrades.

DEDICATED REMOTE CONTROLLER
Take control of your platform with the customizable, long-range remote controller included with the Matrice 100. With an operating distance of up to 3.1 miles* (5km), a rechargeable battery, fully adjustable controls, and outputs to connect to your mobile device, this is the perfect tool to command your system in the air.
*Maximum range tested in open areas free of interference and may vary depending on local regulations.

FULL MOBILE APP SUPPORT
Fly with the feature-rich DJI GO app or create your own app with the DJI SDK. See a live view, control your devices, access a real-time map, and more by simply plugging in your tablet or smartphone.

ENHANCED GPS
Enhanced GPS with a foldable mount helps you to track your Matrice 100’s position in real time, while enabling faster satellite acquisition, more accurate position holding and flight planning.

UPGRADED FLIGHT CONTROLLER AND INTEGRATED LIGHTBRIDGE
DJI’s new N1 flight controller keeps your Matrice 100 stable and responsive to your commands throughout every flight. Transmitting data to you and bringing a live HD view (when using DJI’s X3 Camera and gimbal), the included DJI Lightbridge increases your flight range to 3.1miles* (5km).
*Maximum range tested in open areas free of interference and may vary depending on local regulations.

PURPOSE-BUILT PROPULSION SYSTEM
An upgraded version of the respected DJI E800 electric propulsion system powers your Matrice 100 and keeps it in flight. Four powerful, brushless motors and four lightning fast Electronic Speed Controllers are integrated into the platform, giving you complete control during flight. With increased strength and payload capacity, you have the flexibility to create the system you need.

COMPATIBLE PARTS FOR FURTHER FUNCTIONALITY
The Matrice 100 is compatible with a wide range of DJI accessories
