GET CLOSER, SEE MORE

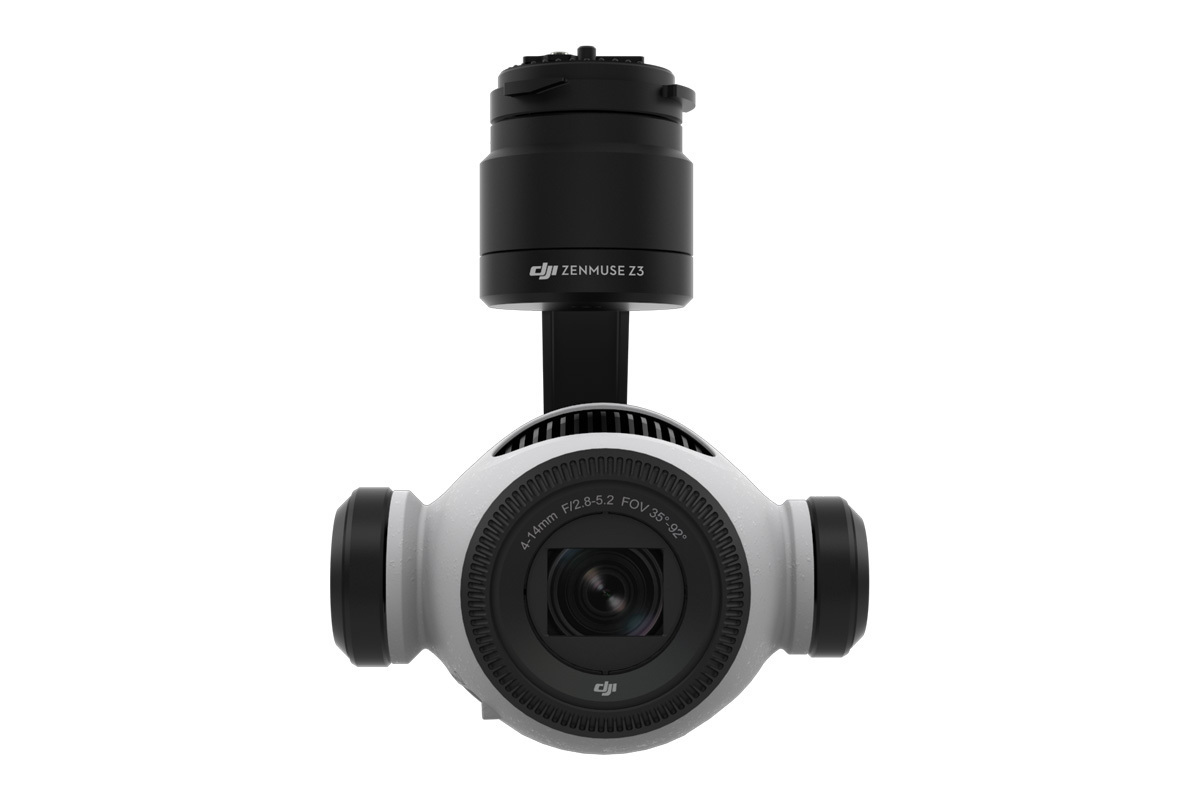

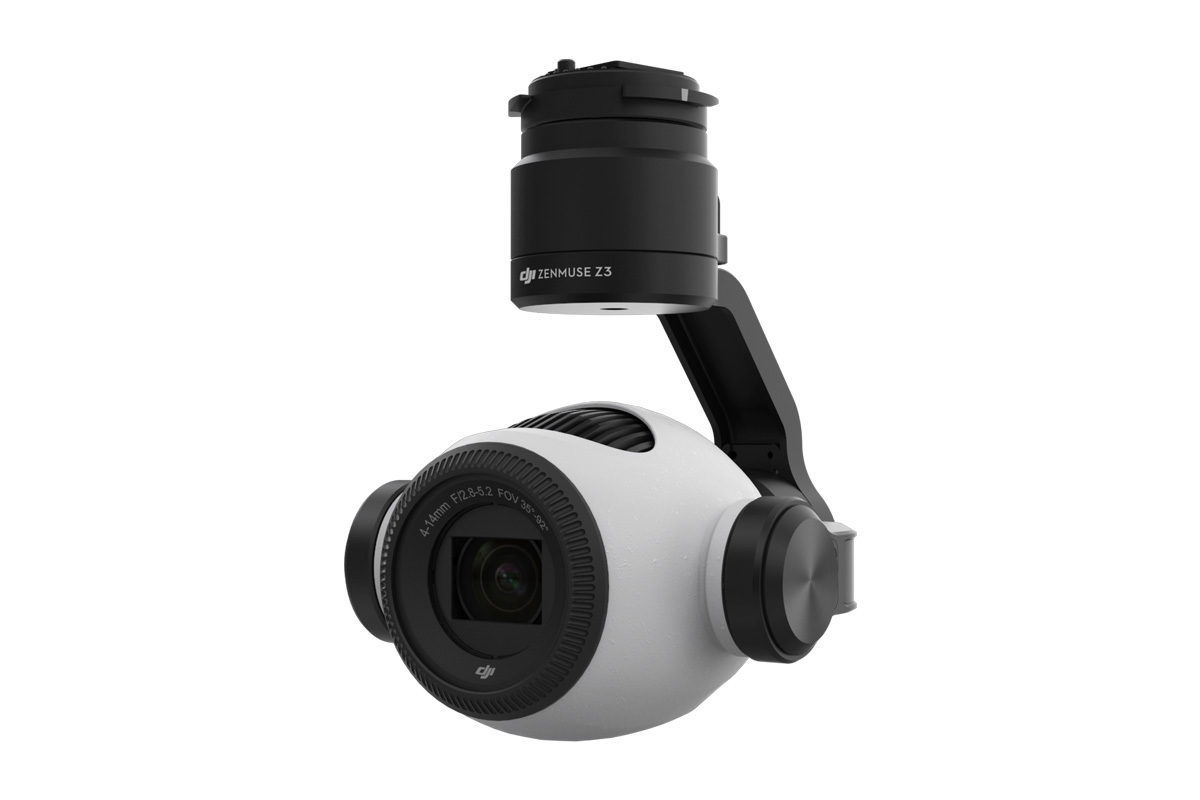

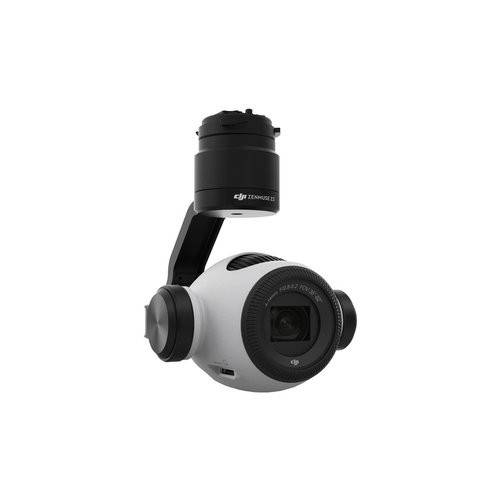

When shooting aerial, getting closer to your subject meant flying nearer, but no more. The DJI Zenmuse Z3 is an integrated aerial zoom camera based on DJI’s class leading Zenmuse X3 and optimized for still photography. A 7× zoom, made up of 3.5× optical and 2× digital lossless zoom, gives it a focal length ranging from 22mm to 77mm, making it ideal for industrial applications.

Real-Time Zoom View
When shooting at the highest possible resolution, i.e. 4K video or 12 megapixel photos, optical zoom can be used, and the zoomed image is instantly visible in the DJI GO live feed. If shooting in 1080p, lossless zoom allows the full 7× of zoom without without sacrificing full-HD image quality.

Enhanced Yaw Stability
When a camera is zoomed in the smallest movements are magnified. Adding an additional layer of control to the Z3’s yaw is a custom designed reaction wheel. This works in tandem with the normal yaw motor to allow for more refined and controlled movement.

High Quality Imaging
Featuring the same highly refined Sony 1/2.3 inch sensor found on the DJI Inspire 1 2.0 and DJI Phantom 4, image quality is class leading. Still images can be captured at a resolution of 12 megapixels, while Adobe DNG RAW support allows for advanced image editing. Video can be captured at up to 30 frames per second in crisp 4K.

Applications
The ability to zoom in the air creates many new opportunities to streamline and enhance industrial and commercial drone use, from power line inspection to search and rescue. It also provides aerial photographers with greater control over composition.

Rapid Setup
Flying with the Zenmuse Z3 is as simple as attaching it to the DJI Inspire 1, Matrice 100 or Matrice 600. Once connected, it works seamlessly with the integrated DJI Lightbridge and Lightbridge 2 found on these platforms to provide 3.1mi (5km) of HD transmission range. Aircraft setup can be further accelerated using the DJI SDK to create industry specific aircraft automation protocols that maximize aircraft efficiency.

Flight times when used with a DJI Inspire 1 reach up to 19 minutes, and can even reach 30 minutes when flying a dual-battery equipped Matrice 100 and 39 minutes using the Matrice 600. Longer flight times maximize airtime, increasing the efficiency of industrial and commercial projects while providing photographers with additional time to wait for the right light, compose and capture the perfect shot.
All flight times vary based on payload and flight conditions.
Maximum flight times are tested with maximum capacity batteries and no additional payload.

Powerful App Control
DJI’s GO app is tightly integrated with the Z3, acting as both a live feed to see the camera’s image and the primary control system for the camera. It can be used to change camera settings, swipe to zoom in and out, capture photo or video, and activate Intelligent Flight Modes. Photo and video capture as well as zoom can also be controlled through dedicated controls on the Remote Controller.

(DJIZMZ3)

General

Name       Zenmuse Z3
Dimensions       105×115×85 mm
Weight       262 g

Camera

Sensor
        CMOS, 1/2.3"
Max Pixels: 12.76 M, Effective Pixels: 12.4M
Lens
        3.5x Optical Zoom, 22–77mm Equivalent
F2.8 (Wide) - F5.2 (Tele), FOV 92° (Wide) - 35° (Tele)
Photo Resolutions
        4:3
  • L: 12M, 4000x3000
  • M: 8M, 3264x2448
  • S: 5M, 2592x1944
16:9
  • L: 9M, 4000x2250
  • M: 6M, 3264x1836
  • S: 4M, 2592x1458
Video Resolutions
        UHD: 4K (4096x2160) 24/25p
4K (3840x2160) 24/25/30p
2.7K (2704×1520) 24/25/30p
FHD: 1920x1080 24/25/30/48/50/60p
Photo Quality       Superfine, Fine, Normal
Video Quality       Superfine, Fine, Normal
Photo Formats       JPEG, DNG, JPEG+DNG
Video Formats       MOV, MP4
Video Repair Feature       Supported
Working Modes       Capture, Record, Playback
Still Photography Modes       Single shot, Burst shooting: 3/5/7 frames, Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7EV bias, Time-lapse
Exposure Mode       Auto, Manual, Shutter
Exposure Compensation       ±3.0 (1/3 increments)
Metering Mode       Center-weighted metering, Average metering, Spot metering (Area option 12x8)
AE Lock       Supported
Electronic Shutter Speed       8 - 1/8000s
White Balance       Auto, Sunny, Cloudy, Incandescent, Neon, Custom (2000K–10000K)
ISO Range

  • 100 - 3200 (video)
  • 100 - 1600 (photo)
Video Captions       Supported
Anti-flicker       Auto, 50Hz, 60Hz
PAL/NTSC       Supported
Supported SD Cards

  • MicroSD(SD/SDHC/SDXC)
  • Max. Capacity: 64 GB, Class 10 or UHS-1
Supported File Systems
  • FAT32 (≤ 32 GB)
  • exFAT (> 32 GB)
USB Port       USB 2.0 Host/Device



Gimbal

Angular Vibration Range       ±0.02°
Mount       Detachable
Controllable Range       Tilt: +30° to -90°, Pan: ±320°, Roll: ±15°
Mechanical Range       Tilt: +50° to -140°, Pan: ±330°, Roll: +90° to -50°
Max Controllable Speed       120°/s



Environmental

Operating Temperature       14 to 104°F (-10 to 40℃)
Non-Operating Temperature       14 to 140°F (-10 to 60℃)
SKU DJIZMZ3
Brand DJI
