DJI Goggles

Immersive FPV

$709.00

More info.

Make 4 interest-free payments of $177.25 fortnightly and receive your order now.

Sold Out - Backorder Available
PRE-ORDER - Estimated Shipping 20th May 2017

Make 4 payments of $177.25 over 8 weeks and get it now!

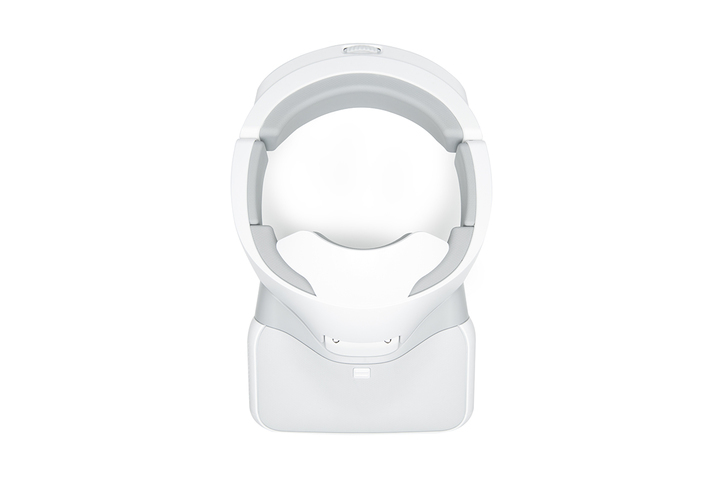

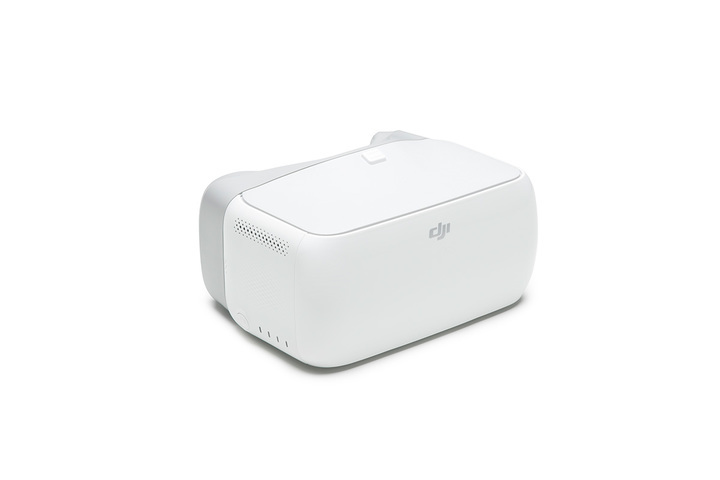

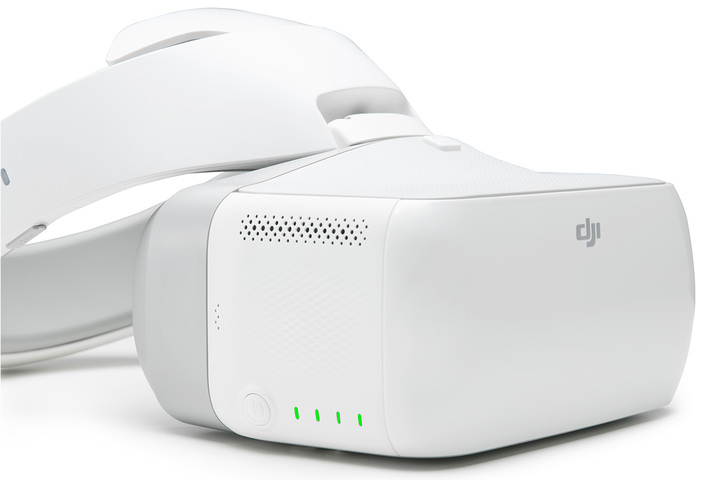

The DJI Goggles are comfortable goggles designed for seamless FPV flying with DJI products (Mavic, Phantom 4 series, Inspire series). They combine a pair of large ultra-high quality screens, long-range, low lag wireless connectivity, and direct control of photo and video capture. With intelligent Flight Modes like ActiveTrack, Tapfly, Terrain Follow, Cinematic Mode, and Tripod mode, a totally new flying dimensions is created.

Low Lag Transmission

DJI Goggles are able to offer both 720p/60fps and close range 1080p/30fps viewing with an extremely low latency of jut 110ms. through DJI's OcuSync wireless transmission system, up to four devices can be connected to the Mavic Pro simultaneously (2 goggles per 2 controllers). Antennas built into the headband ensure 360° of coverage, offering a reliable connection even if the aircraft is flying behind you. Share the fun of immersive flying with friends by giving them a bird's eye view of the world as you pilot their experience.

High Quality Optics

No Latticing: Each screen packs its pixels together tightly so you see a clean, cohesive image with no latticing. DJI Goggles can be used non-stop for a maximum of 6 hours.

Head Tracking

Your head movements control both aircraft yaw and camera tilit in Head Tracking Flight mode as with remote controller sticks. All you need to do is turn left or right to yaw left or right, and straighten your head to stop turning. In Head Tracking Gimbal mode, only the gimbal will move without affecting yaw.

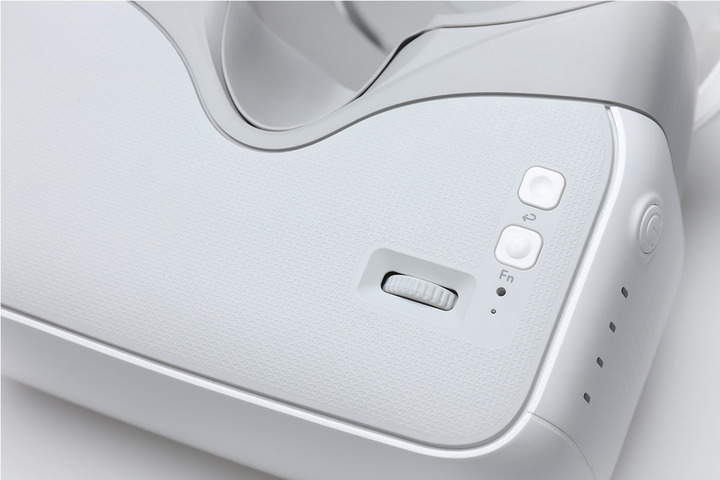

Touchpad & Remote Controller

Access to key intelligent features through a touchpad integrated into the DJI Goggles or 5D button on the Mavic Pro controller makes navigating the internal menu system easy and intuitive

Intelligent Flight

DJI Goggle are a perfect pair with DJI's new Intelligent Flight Mode: Fixed-Wing Mode. In this mode, the Aircraft doesn't turn left or right, but instead flies forward with enough rotational movement for realistic flight simulation. Combined with Head Tracking Mode, you can use your head to contro the Mavic Pro for a fully realised flight experience.
An AR trajectory predication feature in Fixed-Wing Mode makes using this mode in complex environements safer. Other Intelligent Flight Modes include Terrain Follow, ActiveTrack, TapFly, Cinematic Mode and Tripod Mode

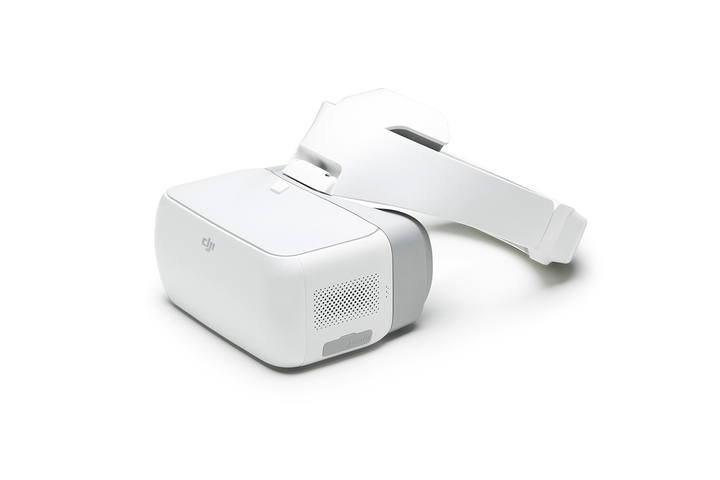

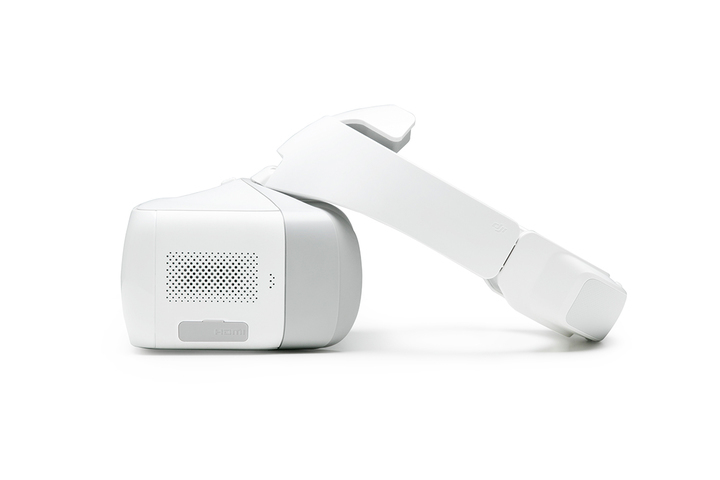

Comfortable and Flexible

A unique solid headband design balances and spread the weight of DJI Goggles around the head evenly, minimising pressure on the face and keeping them confortable to wear for hours. People who wear glasses are also able to wear them comfortably. The screen portion of DJI Goggles can be flipped up to glimpse the real world, or detached entirely for easy storage and portability.

Connect Your Devices

Micro USB Input - Connect compatible Phantom 4 series and Inspire 2 using the USB port to get access to tracking functions and head tracking. It is also used for firmware upgrades

HDMI Input - Watch camera feeds from a Phantom 4 series or Inspire drones, or plug in a video device to watch films or play games.

Audio - Plug headphones into the headphone jack, or use the onboard speakers to listen to audio or videos being played through the HDMI cable.

Micro SD Card - Download files from the aircraft to the goggles onboard SD card for a backup, or view video files you have captured



(DJIGog)

OPERATION

What is the correct way to put on and wear the DJI Goggles?

Insert the headband buckle into the slot above the lenses until you hear a click. Check that it has been fastened securely. 2. Align the lenses over your eyes and pull the strap down. Adjust the strap knob until the headset fits snugly and comfortably on your head.

Can I wear glasses while using the DJI Goggles kit?

Yes. The DJI Goggles can be worn over glasses.

Are the DJI Goggles water-resistant?

No, they are not.

How do I adjust the interpupillary distance (IPD) between the lenses? What pupil distance will suit me best?

First, turn the IPD knob to adjust the distance between the lenses until the images are aligned. When the images align, you will have the most suitable pupil distance for you.

How do I avoid touching the touchpad by mistake?

You can lock the touchpad by swiping backwards with two fingers.

When pressing and holding down the power button, my DJI Goggles sometimes only work sporadically. Why?

To ensure normal system functioning, the DJI Goggles will not respond to any on/off command within 10s after the last turn on/turn off.

CONNECTIVITY

How many DJI Goggles can be connected to one Mavic Pro drone at the same time?

Apart from pairing the DJI Goggles with a Mavic Pro drone and remote controller, there are two other connection combinations: 1. One Mavic Pro drone + two DJI Goggles + two Mavic Pro remote controllers 2. One Mavic Pro drone + one DJI Goggles + two Mavic Pro remote controllers.

What happens when more than one pair of DJI Goggles / remote controllers are connected to the same drone?

In Coach Mode, only the master remote controller can change the flight mode. The drone starts to respond to the slave remote controller only when the master remote controller doesn't give any commands for more than two seconds. The master remote controller can override anytime. In Dual Operation Mode (one drone + two DJI Goggles + two remote controllers), the slave DJI Goggles will not support Head Tracking Mode. If the remote controller and DJI Goggles are being operated by the same user, a spotter who is able to give instructions and warnings is required to ensure safe flying.

What DJI drones are compatible with the DJI Goggles through USB cables?

Phantom 4, Phantom 4 Pro, Phantom 4 Advanced, and Inspire 2.

What devices can be connected with the DJI Googles using the HDMI connector?

Any device that has an HDMI port.

What is the Micro SD Card slot on the DJI Goggles used for?

The Micro SD Card slot on the DJI Goggles is used to download files from the aircraft to the goggle’s onboard SD card for backup and to view captured video files.

Can I download videos not recorded by a drone to a Micro SD Card and then insert them into the DJI Goggles to watch them?

No.

Why is the Mavic Pro the only drone that can be connected to the DJI Goggles wirelessly?

Because of OcuSync. The same video tranmission system carried by the Mavic Pro has also been integrated into the DJI Goggles, making the wireless connection between these two devices possible.

What are the main differences between HD Mode and Smooth Mode?

In HD Mode, the resolution of video transmission footage reaches 1080p/30fps for near field, lowering to 720p/30fps for far field or when affected by interference. In Smooth Mode, the resolution will remain at 720p/60fps. The former is for a more clear and immersive FPV experience, and the latter is for smoother FPV footage.

Why does the video transmission image quality in my DJI Goggles sometimes change?

The resolution of video transmission footage seen in the DJI Goggles changes along with the video recording resolution. Therefore: 1. When video is recorded at 4K, the highest video tranmission resolution is 720p/30; 2. When video is recorded at 2.7K, video transmission resolution tops out at 1080p/30; 3. When video is recorded at 1080p or below, depending on whether the frame rate is higher than 30fps or lower than 30fps, the max video transmission resolution will be 720p/60fps or 1080p/30fps, respectively.

What is the difference between the DJI Goggles 1080p screens and other 2K screens?

Typical “2K” screens inside other brands of goggles are split into two 1280x1440 sections, one for each eye at 720p. The DJI Goggles use dual 1080p screens, meaning that each screen has a maximum resolution of 1920*1080.

What kind of latency is there when the DJI Goggles are connected with different devices?

HD video downlink latency (near field and free of interference) can be as low as: 110 ms (Mavic Pro, 720p60, video format: 720p120) 150 ms (Phantom 4 series, 720p60, video format: 720p60/720p120) 140 ms (Inspire 2+X5S, 720p60, video format: 1080p120) 190 ms (Inspire 2+X4S, 720p60, video format: 1080p60)

UPDATING FIRMWARE

How do I update the DJI Goggles firmware?

There are three main ways to update firmware: 1. Directly connect your DJI Goggles to a PC. 2. Pair your remote controller, drone, and DJI Goggles before connecting the remote controller to a PC, and update all three devices together. 3. Pair your remote controller, drone, and DJI Goggles, then connect the remote controller with the DJI GO app (or GO 4.0) to update the three devices simultaneously within the app.

TECHNOLOGY

Do the DJI Goggles offer the same functions no matter what device they're connected to? If not, what are the main differences?

No. For specific functions according to the different devices the DJI Goggles are connected to, please refer to the user manual.

Why does a drone connected to the DJI Goggles keep rotating in Head Tracking Mode even when I have already stopped moving?

In Head Tracking Mode, a drone's yaw depends on the pilot's head movements. If the pilot doesn't stop where he began, the drone will keep rotating until the pilot turns his head back to the original position.

Why do the C1/C2 buttons on the Mavic Pro controller stop responding when the drone is connected to the DJI Goggles?

For ease of operation, when the Mavic Pro is connected to the DJI Goggles, the C1/C2 buttons are automatically set to the Fn/Back buttons, which function the same as on the DJI Goggles.

BASIC

Weight Goggles: 495 g
Headband: 500 g
Dimensions Goggles: 195×155×110 mm
Headband(Folded): 255×205×92 mm
FOV 85° (single screen)
Screen Size 5 inch×2
Interpupillary Distance Range 58 – 70 mm
Refresh rate 60 Hz
Screen Resolution 3840×1080 (single screen: 1920×1080)
Operating Frequency 2.4 GHz
Max.Transmission Distance Same as the aircraft connected
Video Downlink Resolution 1080p 30, 720p 60, 720p 30
Video Downlink Latency at least
(Near field and free of interference)
110 ms (Mavic Pro, 720p60, video format: 720p120) 150 ms (Phantom 4 series, 720p60, video format: 720p60/720p120)
140 ms (Inspire 2+X5S, 720p60, video format: 1080p120)
190 ms (Inspire 2+X4S, 720p60, video format: 1080p60)
Battery Capacity 9440 mAh
Battery Energy 35.44 Wh
Max Operating Time 6 hrs
Operating Temperature Range 32°F (0°C) - 104°F (40°C)
I/O Interface Micro USB, 3.5mm audio jack,
HDMI type-D, Micro SD card slot
HDMI Supported HDMI 1.4b, HDCP 1.4
Sensors Gyroscope, Accelerometer, Proximity sensor
Charger Input: 100-240VAC, 50/60 Hz. 0.5A
Output: 5V,3A ; 9V,2A;12V,1.5A
SKU DJIGog
Brand DJI
Type FPV
